Surface Preparation Equipment

Innovative Tools for Flawless Surfaces

Overview

We offer high quality Surface Preparation Equipment to our esteemed customers. These Tools are precisely engineered using advanced machinery that is based on cutting-edge technology. Manufactured as per the industry-set standards, these offered tools find wide application in different construction industries.

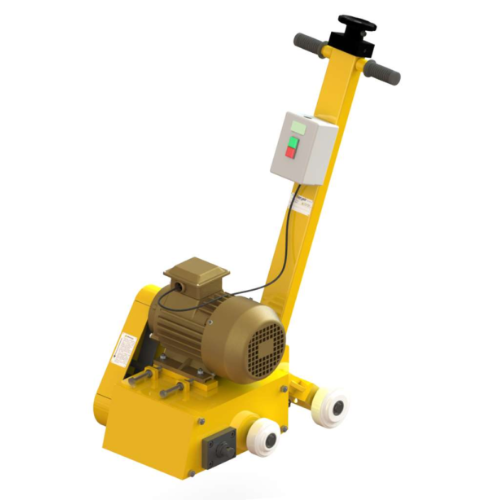

Scarifier

Electric Deck Scalers are used for removing scales and surface paint from the decks of ships. The scalers have a handle, allowing the operator to stand during use, relieving fatigue and protecting the eyes from dust and chipped metal or scale.

Specifications

IMPA No	Part number	Electric Motor	ScalingWidth	Free Running Speed	Weight
59 04 09A	ERDS84-440V	AC 440V 3 Phase	300 mm	3500 rpm	74Kgs
59 04 09B	ERDS84-110V	AC 110V 1 Phase	300 mm	3000 rpm	74Kgs
59 04 09C	ERDS84-220V	AC 220V 1 Phase	300 mm	3000 rpm	74Kgs

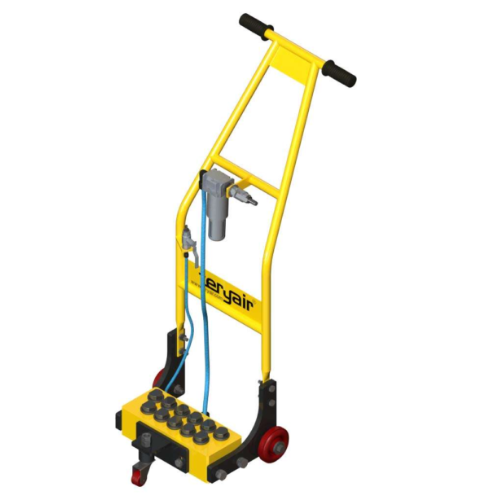

Deck Scaler

Pneumatic Deck Scalers are used for removing scales and surface paint from the decks of ships. These scalers have a handle, allowing the operator to stand during use, relieving fatigue and protecting the eyes from dust and chipped metal or scale.

Specifications

IMPA number	Part number	Scaling System	Number of Piston Head	Frequency	Air Inlet	Weight
50 04 01	PDS11	Reciprocating	11 pieces	4000 bpm	1/2″ BSPP	35 kgs

Multi Head Scabbler (11 Head)

Pneumatic Deck Scalers are perfect for preparation of floor surfaces. These machines are ideally used for removal of floor coating like paint, chemical & corrosion. Pistons are tungsten tipped & easily replaceable.

Specifications

Part number	Max operating pressure	Air Consumption (No Load)		Working width	Height (mm)	Blows per min (BPM)	Sound Power Level (Load) LwA db(A)	Vibration Level Primary (m/s2)	Mass (Weight kg)	Thread Size of Air Inlet
		CFM	m3/ min
FPHD-11	6kg/cm2 (90 psi)	70	1.98	250	1290	2200×11	97	5	70	3/8″ BSP

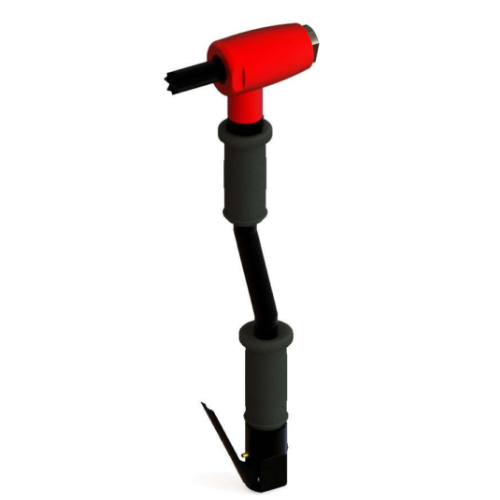

Scabblers

Pneumatic Scabbling Hammers remove heavy rust and scale by the impacting action of a reciprocating piston. They are used where there is a need to break through heavy and stubborn layers of rust or chemical coatings.

Specifications

IMPA Ne	Part wember	Maximum operating pressure	Air Consumption (No Load)		No of Piston	Piston Diameter (mm)	Piston Length (mm)	Piston Stroke (mm)	Blows per min (BPM)	Sound Power Level (Load) (LWA db(A))	Vibratio a Level Primary (m/s2)	Mass (Weight kg)	Thread Size of Air Inlet
			CEM	m3/min
59 03 81A	ISC	6kg/cm2 (90 psi)	1	0.23	1	27	111	26.2	2400	106.9	9.6 (k)	2.6	1/2″ BSP
59 03 83	3SC	6kg/cm2 (90 psi)	15	0.42	3	27	111	26.2	3×2400	111.3	8.7(k)	5.7	1/2″ BSP

1720SM Semi Automated Block Making Machine

This is a 16 Block Semi Automatic Heavy Duty Hydraulic Concrete Block Making Machine With Feeder Box Attachment And Driver Sheet. The feeder box attachment makes the feeding of materials to mold easy and fast. This machine is easy to operate and make good production of Concrete Block, Hollow Block, Solid Block can be made in this machine. All type of block measurement moulds can be designed based on customer’s requirement.

ADDITIONAL INFORMATION

Capacity: 100-120 Strokes / Hour
Power (Total): 26.75 hp- 3 phase
Cooling System: Cooler with Cooler fan
Travel Motor: Hydraulic Type
Control: Panel Board

Specifications

Capacity	6500 Per Day	Capacity	100-120Strokes / Hour
Hydraulic Motor	7.5HP	Power (Total)	26.75 hp- 3 phase
Vibrator	3 HP	Ram Vibrator	4HP 2880rpm with Mechanical Vibrator
Traveler	2 HP	Mould Vibrator	5.5HP 2880/1440 rpm Two Speed with Mechanical Vibrator
Left Right	1.5 HP	Hydraulic System	Hydraulic Power Pack
Mixer	20 HP	Cooling System	Cooler with Cooler fan
Total Power	34 HP	Travel Motor	Hydraulic Type
Weight	1750 Kg	Control	Panel Board

Production	1 Hour	8 Hour
400x200x100 mm 4”- 16 Blocks	800 Blocks	6400 Blocks
400x200x150 mm 6” -10 Blocks	500 Blocks	4000 Blocks
400x200x200 mm 8” – 8 Blocks	400 Blocks	3200 Blocks
