Painting Equipments
High-Performance Painting Tools for Every Surface
Overview
We offer high quality Painting Equipments to our esteemed customers. These Tools are precisely engineered using advanced machinery that is based on cutting-edge technology. Manufactured as per the industry-set standards, these offered tools find wide application in different construction industries.

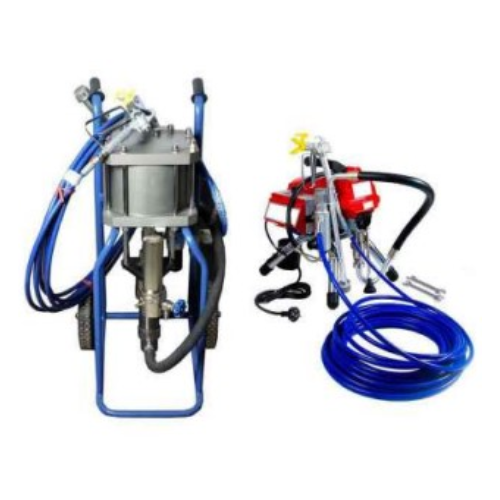

Pneumatic Paint Sprayer
Pneumatic Airless Paint Sprayers are used for marine applications, hence have tough fittings. They include specially treated chrome stainless steel rods and cylinders which can withstand heavy wear and tear. They operate over a longer span of time even when used for pumping highly abrasive or corrosive materials.
Specifications
| Teryair Model No | PPS02 | PPS04 | PPS11 |
| Maximum Fluid (Paint) Working Pressure | 2300 PSI (16.1MPa) (161 Bar) | 3045 PSI (28MPa) (210 Bar) | 3300 PSI (50MPa) (227 Bar) |
| Air Inlet Connection | 1/2” BSP Female | 1/2” BSP Female | 1/2” BSP Female |
| Gun Connection | 1/4” NPS(m) | 1/4” NPS(m) | 1/4” NPS(m) |
| Maximum Tip Orifice | 0.11” to 0.017” | 0.11” to 0.019” | 0.11” to 0.019” |
| Fluid Output Rate | 2 litres/min (0.439 gpm) | 4 litres/min (0.879 gpm) | 11 litres/min (2.419 gpm) |
| Maximum Inlet Air Pressure | 100 PSI (0.7MPa) (7Bar) | 100 PSI (0.7MPa) (7Bar) | 100 PSI (0.7MPa) (7Bar) |
| Air Consumption Maximum | 18 CFM to 25 CFM | 18 CFM to 25 CFM | 45 CFM |
| Wetted Parts Material Of Construction | Stainless Steel SS316 Nickel Plated Carbon Steel, Tugsten Carbide, PTFE | ||
| Note:- Air Consumption is under conditions of spraying Standard Paints. Higher viscosity fluids will require proportionally higher air flow rates. | |||

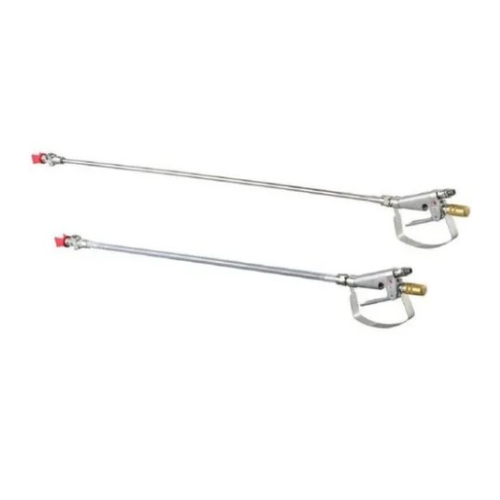

Paint Spray Pole Gun
Paint Spray Pole Guns increases comfort, Speed and productivity needed to spray hard t reach, areas without using ladders or scaffolding.
Specifications
| IMPA Code | 27 01.26 | 27 01 27 | 27 01 28 |
| Model No | PGS 09 | PGS 18 | PGS 24 |
| Length | 900mm | 1800mm | 2400mm |
| Max. Work Pressure | 24.8 MPa | ||
| Inlet Size | 1/4 NPS (m) | ||

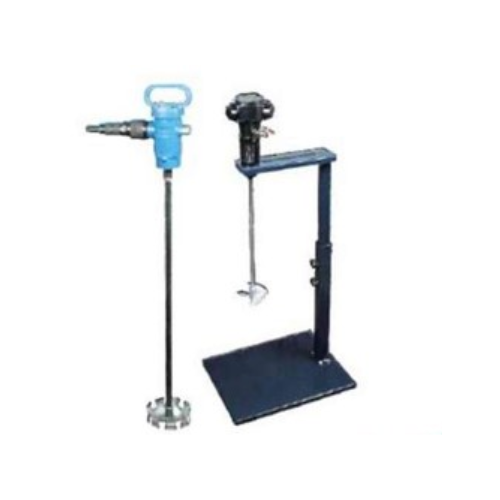

Paint Stirrers
Paint Spray Pole Guns increases comfort, Speed and productivity needed to spray hard t reach, areas without using ladders or scaffolding.
Specifications
| IMPA Code | 27 05 81 | 27 05 82 |
| Model No | PGS 09 | PGS 18 |
| RPM | 500 | 500 |
| Capacity | 40L tr | 200Ltr |
| Air Inlet | 1/4″ BSPP | |
1720SM Semi Automated Block Making Machine
This is a 16 Block Semi Automatic Heavy Duty Hydraulic Concrete Block Making Machine With Feeder Box Attachment And Driver Sheet. The feeder box attachment makes the feeding of materials to mold easy and fast. This machine is easy to operate and make good production of Concrete Block, Hollow Block, Solid Block can be made in this machine. All type of block measurement moulds can be designed based on customer’s requirement.
ADDITIONAL INFORMATION
Capacity: 100-120 Strokes / Hour
Power (Total): 26.75 hp- 3 phase
Cooling System: Cooler with Cooler fan
Travel Motor: Hydraulic Type
Control: Panel Board
Specifications
| Capacity | 6500 Per Day | Capacity | 100-120Strokes / Hour |
| Hydraulic Motor | 7.5HP | Power (Total) | 26.75 hp- 3 phase |
| Vibrator | 3 HP | Ram Vibrator | 4HP 2880rpm with Mechanical Vibrator |
| Traveler | 2 HP | Mould Vibrator | 5.5HP 2880/1440 rpm Two Speed with Mechanical Vibrator |
| Left Right | 1.5 HP | Hydraulic System | Hydraulic Power Pack |
| Mixer | 20 HP | Cooling System | Cooler with Cooler fan |
| Total Power | 34 HP | Travel Motor | Hydraulic Type |
| Weight | 1750 Kg | Control | Panel Board |
| Production | 1 Hour | 8 Hour |
| 400x200x100 mm 4”- 16 Blocks | 800 Blocks | 6400 Blocks |
| 400x200x150 mm 6” -10 Blocks | 500 Blocks | 4000 Blocks |
| 400x200x200 mm 8” – 8 Blocks | 400 Blocks | 3200 Blocks |
