Marine Tools
High-Performance Tools for Marine Applications
Overview
We offer high quality Marine Tools to our esteemed customers. These Tools are precisely engineered using advanced machinery that is based on cutting-edge technology. Manufactured as per the industry-set standards, these offered tools find wide application in different construction industries.

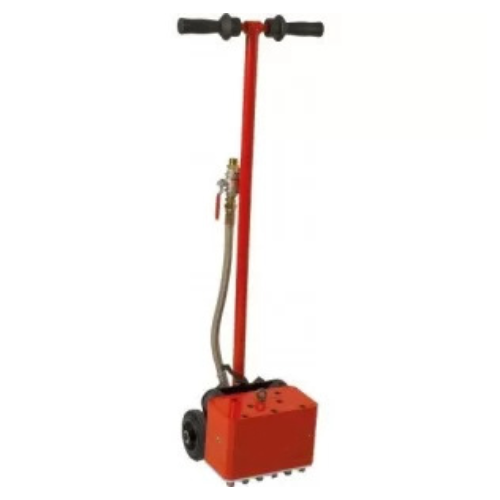

Deck Scaler
Pneumatic Deck Scalers are perfect for preparation of floor surfaces. These machines are ideally used for removal of floor coating like paint, chemical & corrosion. Pistons are tungsten tipped & easily replaceable.
Specifications
| Part number | Maximum operating pressure | Air Consumption (No Load) | Working width | Height | Blows per min | Sound Power Level (Load) | Vibration Level Primary | Mass (Weight) | Thread Size of Air Inlet | |
| CFM | m3/ min | mm | BPM | LwA db(A) | m/s2 | kg | ||||
| FPLD-11 | 6kg/cm2 (90 psi) | 50 | 1.42 | 252 | 1230 | 3000 x 11 | 113.1 | 5.76 | 36 | 3/8″ BSP |
Electric Flexible Descaler
Electric de-Scaling Machines are lightweight electric machines for continuous heavy duty use. An ideal unit for de-rusting and de-scaling jobs. They are portable and fitted with wheels. Can be used with a 110 volt or 220 volt AC power supply.
Specifications
| IMPA No | Part number | Voltage | H.P | KW | No Load Speed R.P.M | Weight |
| 59 12 17 | TEFD75-110V | 110 V | 0.75 | 0.55 | 2800 | 48 kg |
| 59 12 18 | TEFD75-220V | 220V | 0.75 | 0.55 | 2850 | 48 kg |

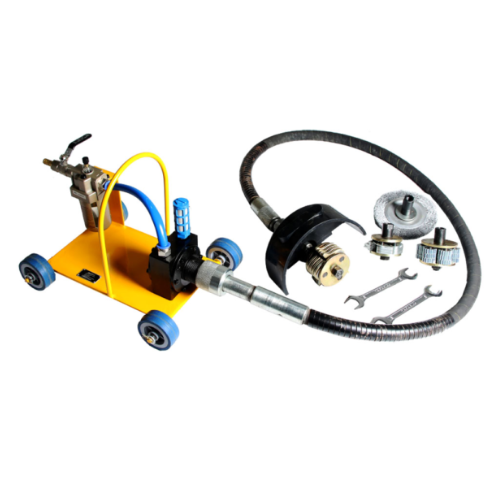

Pneumatic Flexible Descaler
Pneumatic descaling machines are light and easy to handle, but rigidly constructed tools. They efficiently handle heavy duty scaling. Required air pressure is 0.59 Mpa (6kgf/cm²).
Specifications
| IMPA No | Part number | Max Air Consumption | No Load Speed | Air Inlet | Weight |
| 59 12 51 | TPFD75 | 10 cfm | 5000 rpm | 1/2″ BSPP | 21 kgs |

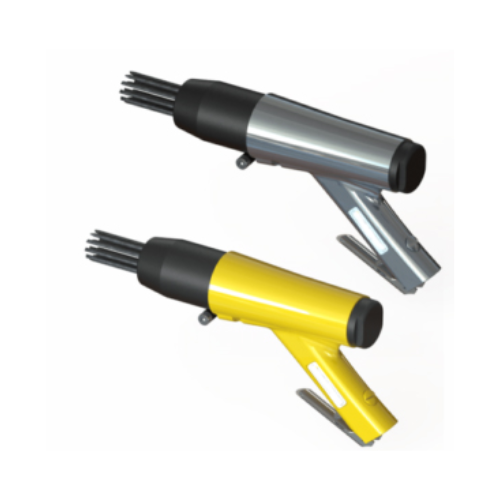

Aluminium Needle Gun
Aluminium needle guns are rugged tools. They are designed to be easy to use and maintain. They are ideal for removing layers of paint, corrosion and chemical coatings etc. from metal and non metal surfaces. These tools work well on irregular surfaces and in crevices and corners. The needles are heat treated and are quickly replaceable.
Specifications
| MPA No | Part number | Maximum operating pressure | Air Consumption (No Load) | Blows per min | Sound Power Level (Load) | Vibration Level | Mass (Weight) | Thread Size of Air Inlet | Needles | |
| CFM | m3/ min. | (BPM) | LwA db(A) | m/s2 | Kg | |||||
| 59 04 63 | N 24 (polished) HN 24 (painted) | 6kg/cm2 (90 psi) | 9.5 | 0.27 | 4000 | 104 | 28 | 2.7 | 3/8″ | 3mm x 23 Nos. |
| 9 04 64 | N 24 (polished) HN 24 (painted) | 6kg/cm2 (90 psi) | 12 | 0.34 | 4500 | 106 | 17.5 | 3.5 | 3/8″ | 3mm x 28 Nos |
| 59 04 61 | SN16PG | 6kg/cm2 (90 psi) | 5 | 0.14 | 4000 | 101 | 11.5 | 1.4 | 3/8″ | 2mm x 29 Nos. |

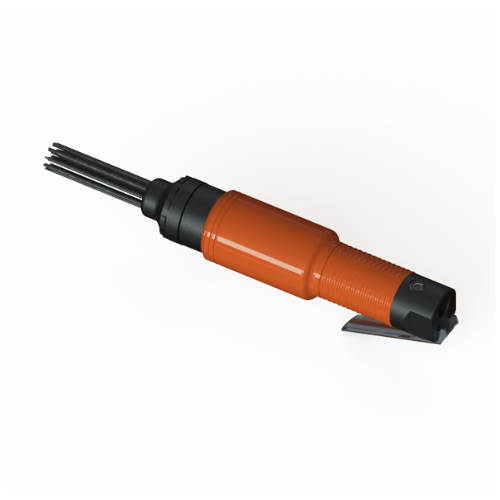

Straight Needle Gun
Straight needle guns are rugged tools. They are designed to be easy to use and maintain. They are ideal for removing layers of paint, corrosion and chemical coatings etc. from metal and non metal surfaces. These tools work well on irregular surfaces and in crevices and corners. The needles are heat treated and are quickly replaceable.
Specifications
| IMPA No | Part number | Maximum operating pressure | Air Consumption (No Load) | Blows per min | Sound Power Level (Load) | Vibration Level | Mass (Weight) | Thread Size of Air Inlet | Needles | |
| CFM | m3/ min | (BPM) | LwA db(A) | m/s2 | Kg | |||||
| 59 04 62 | SN20ST | 6kg/cm2 (90 psi) | 7 | 0.2 | 4000 | 103 | 15.5 | 2.4 | 3/8″ | 3mm x 12 Nos |

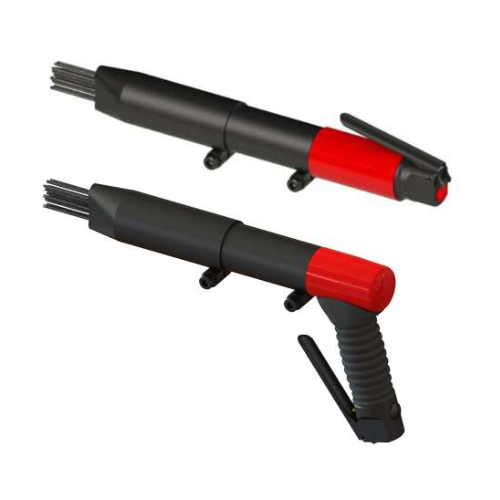

Needle Gun
Pneumatic needle guns are rugged tools. They are designed to be easy to use and maintain. They are ideal for removing layers of paint, corrosion and chemical coatings etc. from metal and non metal surfaces. These tools work well on irregular surfaces and in crevices and corners. The needles are heat treated and are quickly replaceable.
Specifications
| IMPA No | Part number | Maximum operating pressure | Air Consumption (No Load) | Blows per min | Sound Power Level (Load) | Vibration Level | Mass (Weight) | Thread Size of Air Inlet | Needles | |
| m3/ min. | CFM | (BPM) | LwA db(A) | m/s2 | Kg | |||||
| 59 04 63 | SN24ST | 6kg/cm2 (90psi) | 5.5 | 0.16 | 3000 | 113.3 | 9.3 | 2.6 | 1/4″ | 3mm x 19 Nos |
| 59 04 82 | SN24PG | 6kg/cm2 (90psi) | 5.5 | 0.16 | 3000 | 113.3 | 9.3 | 2.6 | 1/4″ | 3mm x 19 Nos |
| 59 04 83 | SN29PG | 6kg/cm2 (90psi) | 8 | 0.23 | 2200 | 114.5 | 18.9 | 3.7 | 1/4″ | 3mm x 28 Nos |

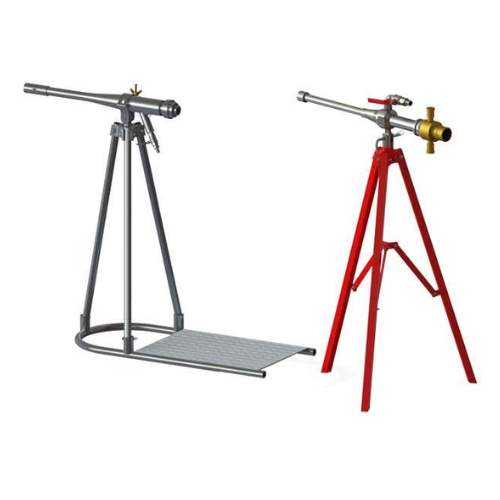

Hold cleaning Gun
Hold Cleaning Guns have been specifically designed for hold cleaning of bulk carrier and cargo vessels of all sizes. This is done by use of a high pressure water stream. A combination of water and compressed air produces a strong stream of water that can be projected to a distance of up to 30 meters for the removal of any loose rust, flaking paint, or cargo residue.
Specifications
| Part number | Material | Effective Distance | Working Pressure | Water Consumption | Water Hose | Air Hose | Weight |
| HC 50 | Aluminum | 20 – 25 m | 70 – 100 psi | 28 tons/hr | 50/65mm | 15 mm | 15 Khgs |
| HC 63 | Stainless Steel | 30 m | 80 – 100 psi | 68 tons/hr | 50/65mm | 19 mm | 25 Kgs |

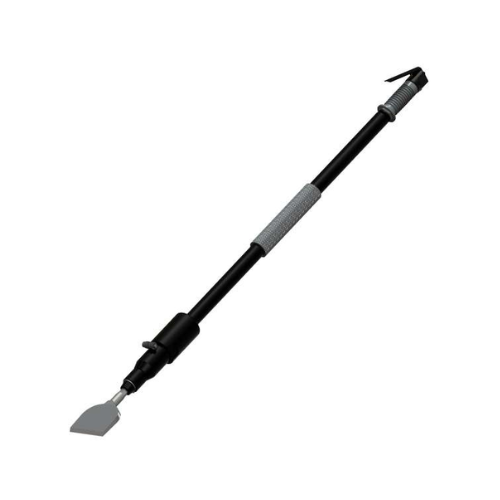

Long Reach Scalers
Long Reach Scalers are powerful pneumatic tools for the removal of saltwater corrosion and marine growth on and off deck and chipping/scaling in hard to reach areas. Supplied with chisel or scraper – the customer can choose from the selection listed. Fast interchangeability between chisels/scrapers/needle attachments.
Specifications
| MPA No | Part number | Maximum operating pressure | Air Consumption (No Load) | Length | Blows per min | Sound Power Level (Load) | Vibration Level | Mass (Weight) | |
| CFM | m3/ min | (BPM) | LwA db(A) | m/s2 | Kg | ||||
| 59 04 51 | LR076 | 6kg/cm2 (90 psi) | 4.5 | 0.13 | 740 | 2200 | 84 | 5.4 | 5.8 |
| 59 04 52 | LR116 | 4.5 | 0.13 | 1100 | 2200 | 84 | 9.5 | 6.2 | |
| 59 04 53 | LR146 | 4.5 | 0.13 | 1400 | 2200 | 86 | 10.1 | 6.6 | |
| 59 04 51 | LR176 | 4.5 | 0.13 | 1710 | 2200 | 116 | 9.8 | 8.1 | |
1720SM Semi Automated Block Making Machine
This is a 16 Block Semi Automatic Heavy Duty Hydraulic Concrete Block Making Machine With Feeder Box Attachment And Driver Sheet. The feeder box attachment makes the feeding of materials to mold easy and fast. This machine is easy to operate and make good production of Concrete Block, Hollow Block, Solid Block can be made in this machine. All type of block measurement moulds can be designed based on customer’s requirement.
ADDITIONAL INFORMATION
Capacity: 100-120 Strokes / Hour
Power (Total): 26.75 hp- 3 phase
Cooling System: Cooler with Cooler fan
Travel Motor: Hydraulic Type
Control: Panel Board
Specifications
| Capacity | 6500 Per Day | Capacity | 100-120Strokes / Hour |
| Hydraulic Motor | 7.5HP | Power (Total) | 26.75 hp- 3 phase |
| Vibrator | 3 HP | Ram Vibrator | 4HP 2880rpm with Mechanical Vibrator |
| Traveler | 2 HP | Mould Vibrator | 5.5HP 2880/1440 rpm Two Speed with Mechanical Vibrator |
| Left Right | 1.5 HP | Hydraulic System | Hydraulic Power Pack |
| Mixer | 20 HP | Cooling System | Cooler with Cooler fan |
| Total Power | 34 HP | Travel Motor | Hydraulic Type |
| Weight | 1750 Kg | Control | Panel Board |
| Production | 1 Hour | 8 Hour |
| 400x200x100 mm 4”- 16 Blocks | 800 Blocks | 6400 Blocks |
| 400x200x150 mm 6” -10 Blocks | 500 Blocks | 4000 Blocks |
| 400x200x200 mm 8” – 8 Blocks | 400 Blocks | 3200 Blocks |
