Concrete Block Maker
Durable & Efficient Block Making Machine
Overview
Providing you the best range of automatic type block making machine, 1060 model block making machine, paver block making machine, 860 hollow block making machine and model 500 concrete block making machine with effective & timely delivery.
ADDITIONAL INFORMATION
Type: Manual / Semi-Automatic / Fully Automatic (as per model)
Weight: Approx. 800 – 2500 Kg
Block Size Compatibility: Standard: 4″, 6″, 8
Motor Power: 3 HP – 10 HP (depending on model)
Voltage: 220V / 440V, 50 Hz

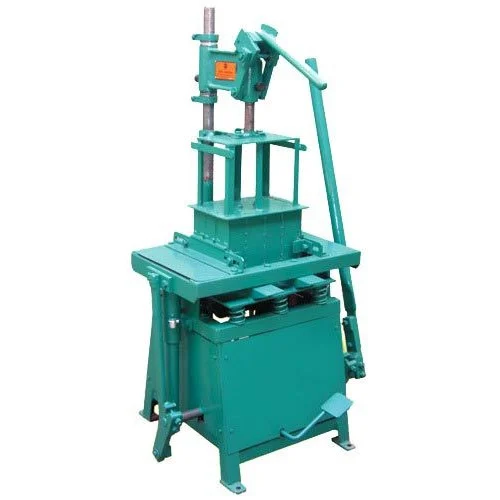

Vibrator Cummanual Operated Concrete Block Making M/C.
This is a manual block making machine. Good concrete blocks with sharp edges can be produced with the use of power/vibrator. This machine can be fitted with a diesel vibrator, which is good for the use in the rural areas where there are frequent power outages. It comes equipped with a 1. 5 hp single phase, or 1 hp 3phase electric vibrator, 1440 rpm and weigh about 700 kgs.
ADDITIONAL INFORMATION
Batch Capacity: 4″ – 4nos per stroke 4″ – 600nos per Shift
No. of operations: 50-55/Hour
Power: 1.5HP Single /Three Phase
Dimension (LxWxH): 1250mmx1100x2050mm
Weight: 500Kg
Specifications
| Batch Capacity | 4″ – 4nos per stroke 4″ – 600nos per Shift 6″ – 2nos per stroke 6″ – 300nos per Shift 8″ – 2nos per stroke 8″ – 300nos per Shift |
| No. of operations | 50-55/Hour |
| Power | 1.5HP Single /Three Phase |
| Vibrator Motor | 1.5HP Single Phase (or) 1.5HP Three Phase |
| Chassis | Heavy duty, Robust Steel Chassis |
| Dimension (LxWxH) | 1250mmx1100x2050mm |
| Mould Area | 350 x 500mm |
| Weight | 500Kg |

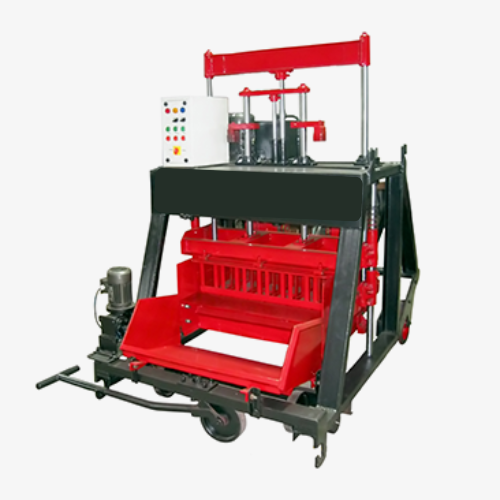

500, 860 & 1060 Model Block Making Machine
ADDITIONAL INFORMATION
Batch Capacity: 4″ – 4nos per stroke 4″ – 600nos per Shift
No. of operations: 50-55/Hour
Power: 1.5HP Single /Three Phase
Dimension (LxWxH): 1250mmx1100x2050mm
Weight: 500Kg
Specifications
| Model | 500 | 860 | 1060 |
| Capacity | 4”- 4No, 6″- 3No, 8” – 2No per stroke | 4”- 8No, 6″- 5No, 8” – 4No per stroke | 4”- 10No, 6″- 6No, 8” – 5No per stroke |
| No. of operations | 50-60 / hr | 50-60 / hr | 50-60 / hr |
| Vibrator Type (1,2,3) | 4 HP | 5HP, 6.5HP, 8HP | 7HP, 8.5HP, 10HP |
| Chassis | Heavy Duty | Heavy Duty | Heavy Duty |
| Hydraulic Oil | 68-Grade, 8 Ltrs | 68-Grade, 12 Ltrs | 68-Grade, 15 Ltrs |
| Dimension (LxWxH) | 1800x820mmx1750mm | 1900mmx1275mmx1750mm | 1900mmx1475mmx1750mm |

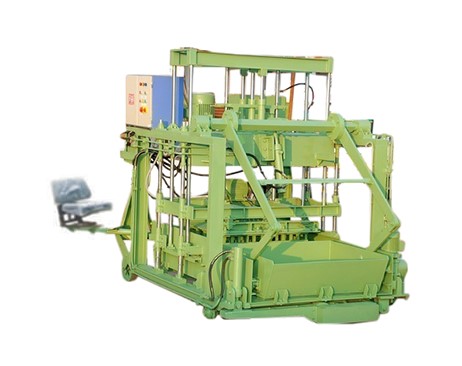

1720SM Semi Automated Block Making Machine
This is a 16 Block Semi Automatic Heavy Duty Hydraulic Concrete Block Making Machine With Feeder Box Attachment And Driver Sheet. The feeder box attachment makes the feeding of materials to mold easy and fast. This machine is easy to operate and make good production of Concrete Block, Hollow Block, Solid Block can be made in this machine. All type of block measurement moulds can be designed based on customer’s requirement.
ADDITIONAL INFORMATION
Capacity: 100-120 Strokes / Hour
Power (Total): 26.75 hp- 3 phase
Cooling System: Cooler with Cooler fan
Travel Motor: Hydraulic Type
Control: Panel Board
Specifications
| Capacity | 6500 Per Day | Capacity | 100-120Strokes / Hour |
| Hydraulic Motor | 7.5HP | Power (Total) | 26.75 hp- 3 phase |
| Vibrator | 3 HP | Ram Vibrator | 4HP 2880rpm with Mechanical Vibrator |
| Traveler | 2 HP | Mould Vibrator | 5.5HP 2880/1440 rpm Two Speed with Mechanical Vibrator |
| Left Right | 1.5 HP | Hydraulic System | Hydraulic Power Pack |
| Mixer | 20 HP | Cooling System | Cooler with Cooler fan |
| Total Power | 34 HP | Travel Motor | Hydraulic Type |
| Weight | 1750 Kg | Control | Panel Board |
| Production | 1 Hour | 8 Hour |
| 400x200x100 mm 4”- 16 Blocks | 800 Blocks | 6400 Blocks |
| 400x200x150 mm 6” -10 Blocks | 500 Blocks | 4000 Blocks |
| 400x200x200 mm 8” – 8 Blocks | 400 Blocks | 3200 Blocks |
