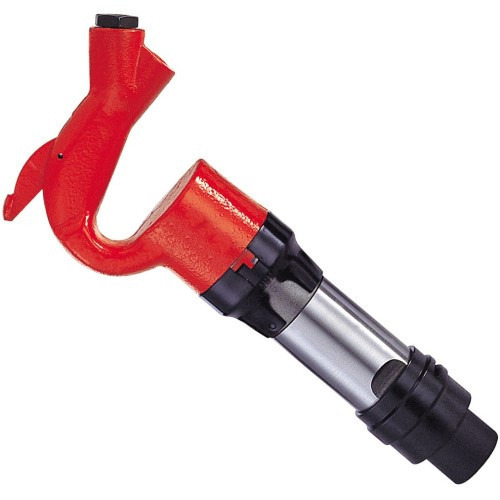

Chipping Hammers
High-Performance Chipping Hammers for Construction
Overview
Chipping Hammers are available in both open and closed handle designs. We offer a range of stroke lengths to offer variety depending on the job at hand.
ADDITIONAL INFORMATION
Type: Pneumatic / Electric (depending on model)
Stroke Length: 2” to 4”
Air Consumption: 20 – 30 CFM
Weight: 3 – 6 kg (light to medium duty)
Overall Length: 12” – 20”
Specifications
| Catalog | Description | Weight (kg) | Length (mm) | Shank (mm) | Bore (mm) | Stroke (mm) | Frequency (bpm) | Air Use (m3/min) |
| CH3PGHX | Chipping Hammer | 7.77 | 435 | 14.7 | 28.6 | 76.2 | 1650 | 0.96 |
| CH3PGRD | Chipping Hammer | 7.77 | 435 | 17.25 | 28.6 | 76.2 | 1650 | 0.96 |
| CH4PGHX | Chipping Hammer | 8.17 | 460 | 14.7 | 28.6 | 101.6 | 1375 | 0.99 |
| CH4PGRD | Chipping Hammer | 8.17 | 460 | 17.25 | 28.6 | 101.6 | 1375 | 0.99 |
| EME1RHX | Chipping Hammer | 7.2 | 362 | 14.7 | 28.6 | 25.4 | 2850 | 0.75 |
| EME1RRD | Chipping Hammer | 7.2 | 362 | 17.25 | 28.6 | 25.4 | 2850 | 0.75 |
| EME2RHX | Chipping Hammer | 7.6 | 377 | 14.7 | 28.6 | 50.8 | 2500 | 0.83 |
| EME2RRD | Chipping Hammer | 7.6 | 377 | 17.25 | 28.6 | 50.8 | 2500 | 0.83 |
| EME3RHX | Chipping Hammer | 8.2 | 427 | 14.7 | 28.6 | 76.2 | 2050 | 0.9 |
| EME3RRD | Chipping Hammer | 8.2 | 427 | 17.25 | 28.6 | 76.2 | 2050 | 0.9 |
| CH2RHX | Chipping Hammer 4 Bolt | 8.2 | 356 | 14.7 | 28.6 | 76.2 | 3600 | 0.85 |
| CH2RRD | Chipping Hammer 4 Bolt | 8.2 | 356 | 17.25 | 28.6 | 76.2 | 3600 | 0.85 |
| CH3RHX | Chipping Hammer 4 Bolt | 8.7 | 387 | 14.7 | 28.6 | 95.3 | 2280 | 0.94 |
| CH3RRD | Chipping Hammer 4 Bolt | 8.7 | 387 | 17.25 | 28.6 | 95.3 | 2280 | 0.94 |
| CH4RHX | Chipping Hammer 4 Bolt | 9.2 | 419 | 14.7 | 28.6 | 108 | 1800 | 0.96 |
| CH4RRD | Chipping Hammer 4 Bolt | 9.2 | 419 | 17.25 | 28.6 | 108 | 1800 | 0.96 |
